HMI-001-RELAY

HMI-001-RELAY Programmable User Interface

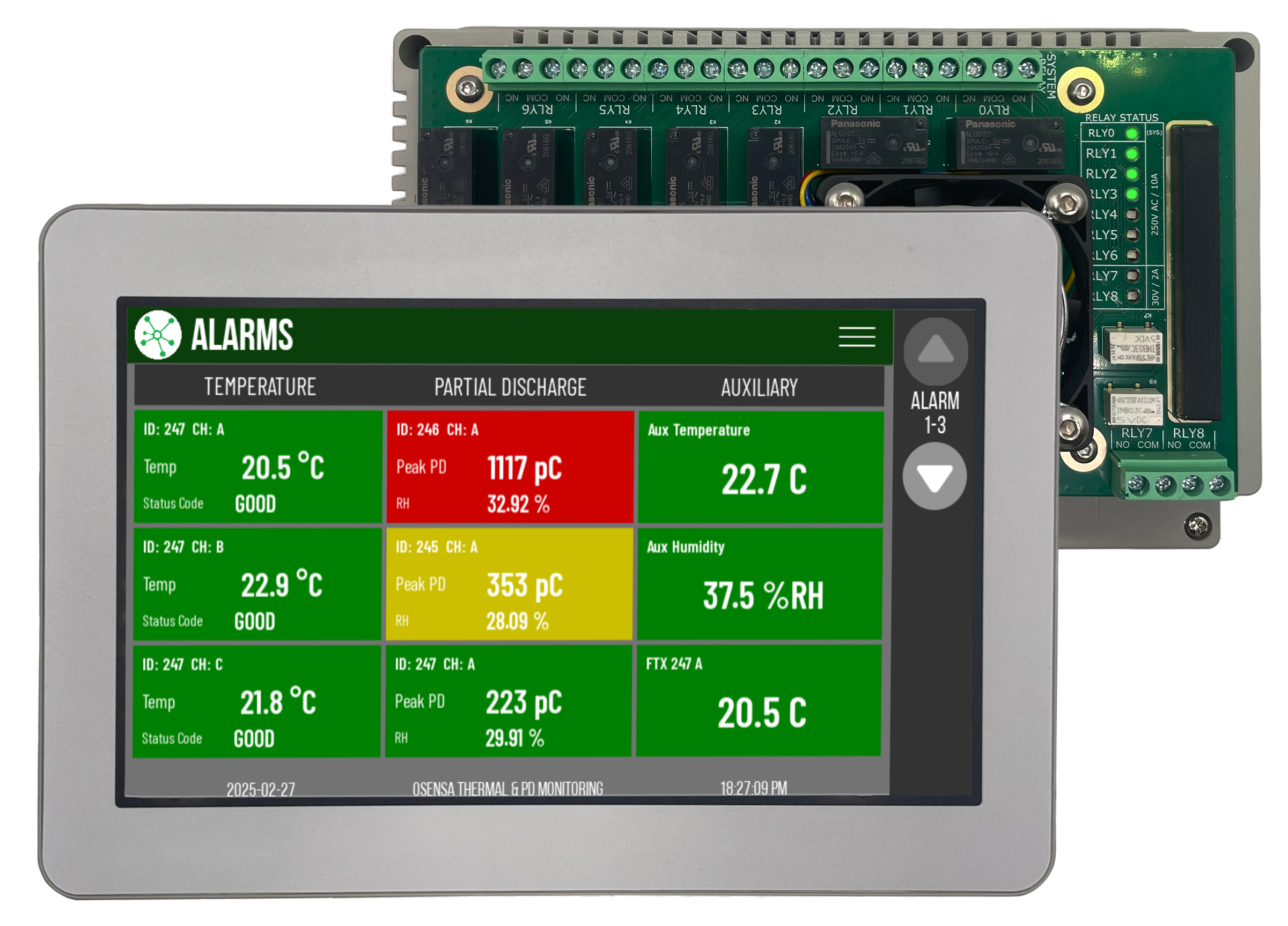

OSENSA’s HMI-001-Relay touch panel display provides remote ethernet connectivity, real-time display and data logging for up to 27 fiber optic channel inputs. The HMI includes native support for Modbus RTU and Modbus TCP/IP while optional licenses for DNP3 and IEC 61850 protocols are also available for purchase.

Product Specs

Operating Environment

-20°C to +70°C, 0 to 90% RH

User Interface

7-inch Touch Screen GUI, Web GUI (hmi-web)

Ports

1x RS-232, 1x RS-485, 2x USB 2.0

Protocols

Modbus RTU, Modbus TCP, DNP3, IEC 61850, RESTful HTTP API

Networking

1x Ethernet 10/100 Mbps , WiFi (available by dongle)

Operating Humidity

0 to 90% RH (Non-Condensing)

Certifications

ISO 9001

Compatible Products

Datasheet

FTX-910-PWR+

Temperature Transmitters

Switchgear, Dry Type Transformer, E-Mobility

9 Ch, RS-485 Only

Number Of Channels:

Relay Outputs:

No relays

Digital Interface:

Isolated RS-485

Datasheet

FTX-610-PWR+

Temperature Transmitters

Switchgear, Dry Type Transformer, E-Mobility

6 Ch, RS-485 Only

Number Of Channels:

Relay Outputs:

No relays

Digital Interface:

Isolated RS-485

Datasheet

FTX-310-PWR+

Temperature Transmitters

Switchgear, Dry Type Transformer, E-Mobility

3 Ch, RS-485 Only

Number Of Channels:

Relay Outputs:

No relays

Digital Interface:

Isolated RS-485

Datasheet

FTX-910-PWR+R

Temperature Transmitters

Switchgear, Dry Type Transformer, E-Mobility

9, 6 or 3-ch Transmitter, RS-485 Only, with 2 Relays

Number Of Channels:

Relay Outputs:

2x Form A, SPST, Normally Open Max Voltage / Curre

Digital Interface:

Isolated RS-485

Datasheet

FTX-610-PWR+R

Temperature Transmitters

Switchgear, Dry Type Transformer, E-Mobility

9, 6 or 3-ch Transmitter, RS-485 Only, with 2 Relays

Number Of Channels:

Relay Outputs:

2x Form A, SPST, Normally Open Max Voltage / Curre

Digital Interface:

Isolated RS-485

Datasheet

FTX-602-PWR+

Temperature Transmitters

Motors & Generators

6 or 3-ch Transmitter, RS-485 Only

Number Of Channels:

Analog Output:

none

Digital Interface:

Isolated 3-wire RS-485

Datasheet

FTX-602-XFMR+

Temperature Transmitters

Oil Filled Transformer

6 or 4-ch Transmitter, RS-485 Only

Number Of Channels:

Analog Output:

none

Digital Interface:

Isolated 3-wire RS-485

Datasheet

FTX-402-XFMR+

Temperature Transmitters

Oil Filled Transformer

4-ch Transmitter, RS-485 Only

Number Of Channels:

Analog Output:

none

Digital Interface:

Isolated 3-wire RS-485

Datasheet

FTX-301-XFMR+

Temperature Transmitters

Oil Filled Transformer

3, 2 or 1-Ch Transmitter, USB, RS-485, 4-20mA

Number Of Channels:

Analog Output:

Isolated 4-20mA

Digital Interface:

USB & Isolated RS-485

Notice: Undefined index: url in /home/osensareno/public_html/template/modules/shopping_cart/frontend/tagged_modules/products.php on line 50

Number Of Channels:

Analog Output:

Isolated 4-20mA

Digital Interface:

USB & Isolated RS-485

Notice: Undefined index: url in /home/osensareno/public_html/template/modules/shopping_cart/frontend/tagged_modules/products.php on line 50

Number Of Channels:

Analog Output:

Isolated 4-20mA

Digital Interface:

USB & Isolated RS-485

Datasheet

HTX-100-XFMR

Temperature Transmitters

Oil Filled Transformer

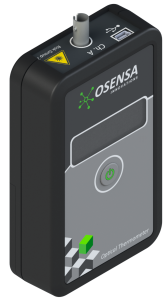

Handheld Fiber Optic Signal Conditioner

Digital Interface:

USB-mini, Wireless

Measurement Range:

-40°C to +200°C

Resolution:

0.1°C

Datasheet

FTX-301-PWR+

Temperature Transmitters

Motors & Generators

3-Ch Transmitter, USB, RS-485, 4-20mA Output

Number Of Channels:

Analog Output:

16-bit, 3kV Isolated 4-20mA

Digital Interface:

USB & Isolated 3-wire RS-485

Datasheet

FTX-301-PWR+R

Temperature Transmitters

Motors & Generators

3 Ch, USB, 4-20mA, RS-485 with 2 Relays

Number Of Channels:

Analog Output:

16-bit, 3kV Isolated 4-20mA

Relay Outputs:

2x Form A, 2A, 30VDC (threshold / differential ala

Datasheet

PDX-800

Partial Discharge Solutions

Switchgear, Dry Type Transformer

Monitors up to eight PDA-100 ultra-high frequency (UHF) smart sensors.

Number Of Channels:

Update Rate:

1.25 seconds per channel

Operating Environment:

-40°C to +75°C
