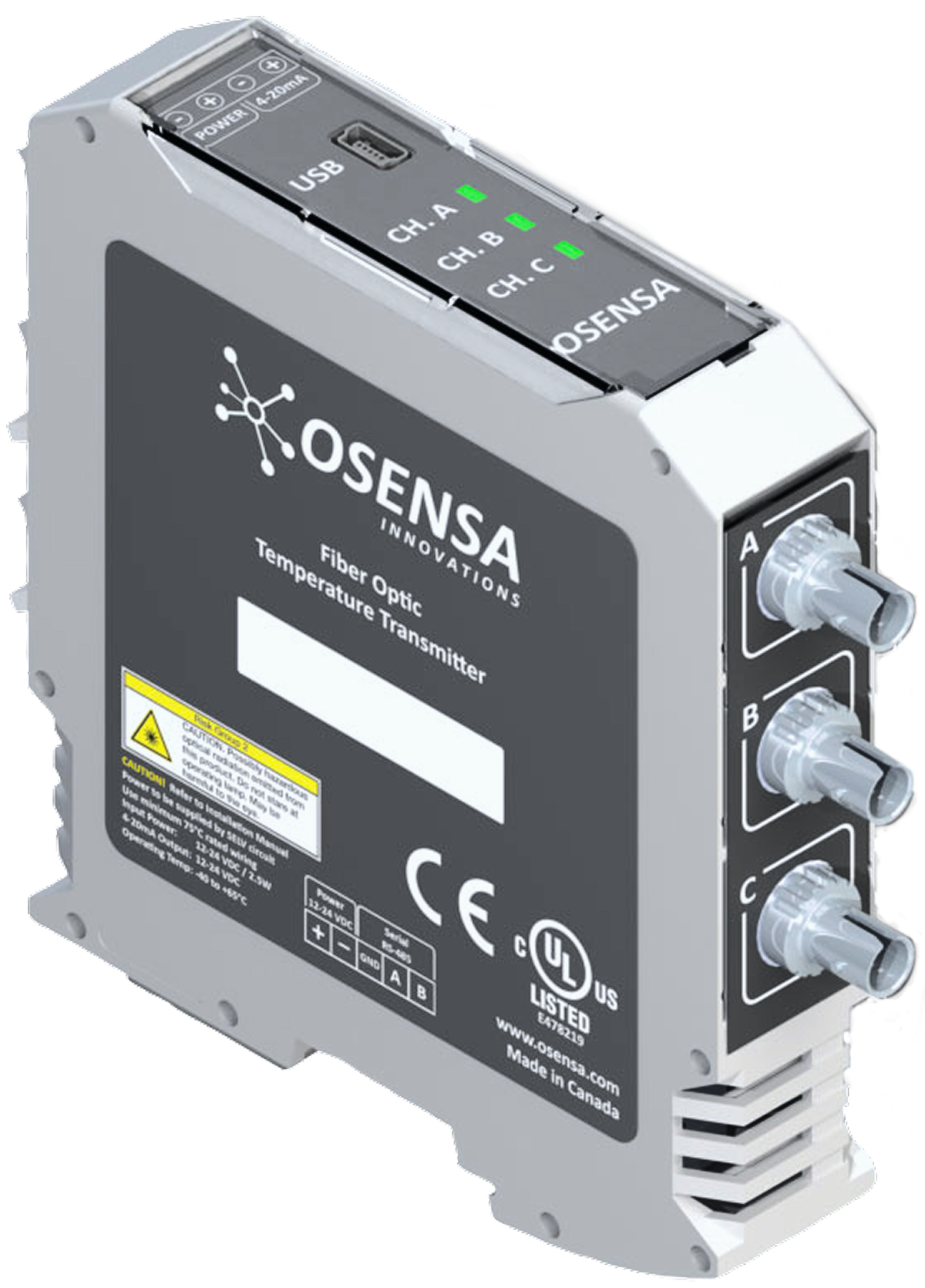

FTX-301-XFMR+

Transformer Hot Spot Fiber Optic Temperature Sensing

The FTX-301-XFMR+ temperature transmitter offers exceptional value for transformer winding temperature monitoring. It reads Luxtron™ brand (manufactured by Lumasense Inc.) fluorescent temperature probes. The signal conditioner connects quickly to a laptop computer with a standard USB cable to provide real-time temperature trending and data logging with the optional OSENSAView Pro software or LabView VI. The isolated, 4-20mA analog outputs are loop powered and provide simple integration with standard industrial PLCs, temperature controllers, and relays. Multiple signal conditioners can be connected in series on a standard 35mm DIN rail and the T-Bus connector supports RS-485 communication over industry standard Modbus RTU protocol.

Compatible Products

Datasheet

FTX-602-XFMR+

Temperature Transmitters

Switchgear, Transformer, E-Mobility

6 or 4-ch Transmitter, RS-485 Only

Number Of Channels:

6

Analog Output:

none

Digital Interface:

Isolated 3-wire RS-485

Datasheet

FTX-402-XFMR+

Temperature Transmitters

Switchgear, Transformer, E-Mobility

4-ch Transmitter, RS-485 Only

Number Of Channels:

4

Analog Output:

none

Digital Interface:

Isolated 3-wire RS-485

Datasheet

FTX-301-XFMR+

Temperature Transmitters

Switchgear, Transformer, E-Mobility

3, 2 or 1-Ch Transmitter, USB, RS-485, 4-20mA

Number Of Channels:

3

Analog Output:

Isolated 4-20mA

Digital Interface:

USB & Isolated RS-485

Datasheet

PRB-GB4

Fiber Optic Temperature Probes

Motors & Generators

2.3mm FEP, 1000µm GOF

Measurement Range:

-40°C to 200°C

Measurement Accuracy:

± 1.0°C

Maximum Rating:

38 kV, 3 phase
