3D ModelsConvenient Fiber Optic Temperature Sensing

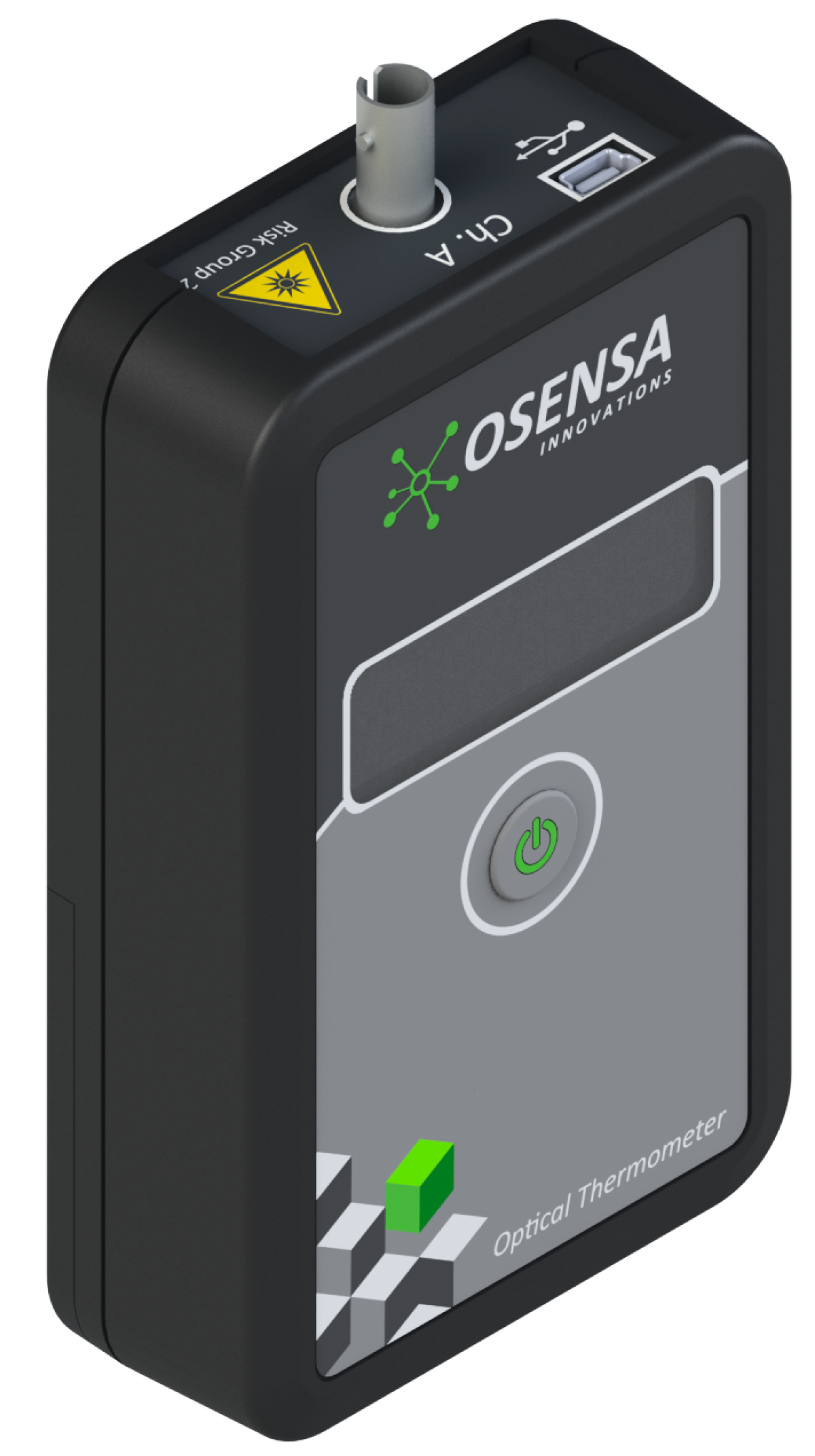

Designed for applications in the power industry, the HTX-100- XFMR series optical thermometer offers flexibility as a portable, battery-powered, temperature sensing diagnostic tool. Users can quickly check probe health at time of install with the backlit LCD displaying both temperature and signal level. The HTX-100-XFMR can also connect to a computer using a mini USB cable for data logging with OSENSAView Pro software. The handheld unit is ruggedized with a shock-proof silicone cover making it a great choice for use in OEM manufacturing and field service. This device can also read Luxtron brand Fluoroptic® transformer winding hot spot probes.
Product Specs
Measurement Range
-40°C to +200°C
Resolution
0.1°C
System Accuracy
±1.0°C
Operating Environment
-20°C to +50°C
Compatible Probes
PRB-G21, PRB-230
Digital Interface
USB-mini, Wireless
Update Rate
30 Hz
Communication Protocol
Modbus RTU, Half Duplex, Bluetooth® Smart
Operating Humidity
0 to 90% RH (Non-Condensing)
Power
Standard 9V Alkaline or Rechargeable
Dimensions
122mm Long x 76mm Wide x 36mm Depth (with silicone cover)
Configuration Software
OSENSAView or OSENSAView Pro
Led Color
RED
Probe Connection Type
ST
Display
Backlit LCD Character Display
Certifications
UL, CE, ROHS
Compatible Products
Fiber Optic Temperature Probes
Oil Filled Transformer
3.0mm PTFE, 200µm GOF
Measurement Range:
-40°C to +200°C
Measurement Accuracy:
±1.0°C
Jacket:
PFTE & Polyimide
