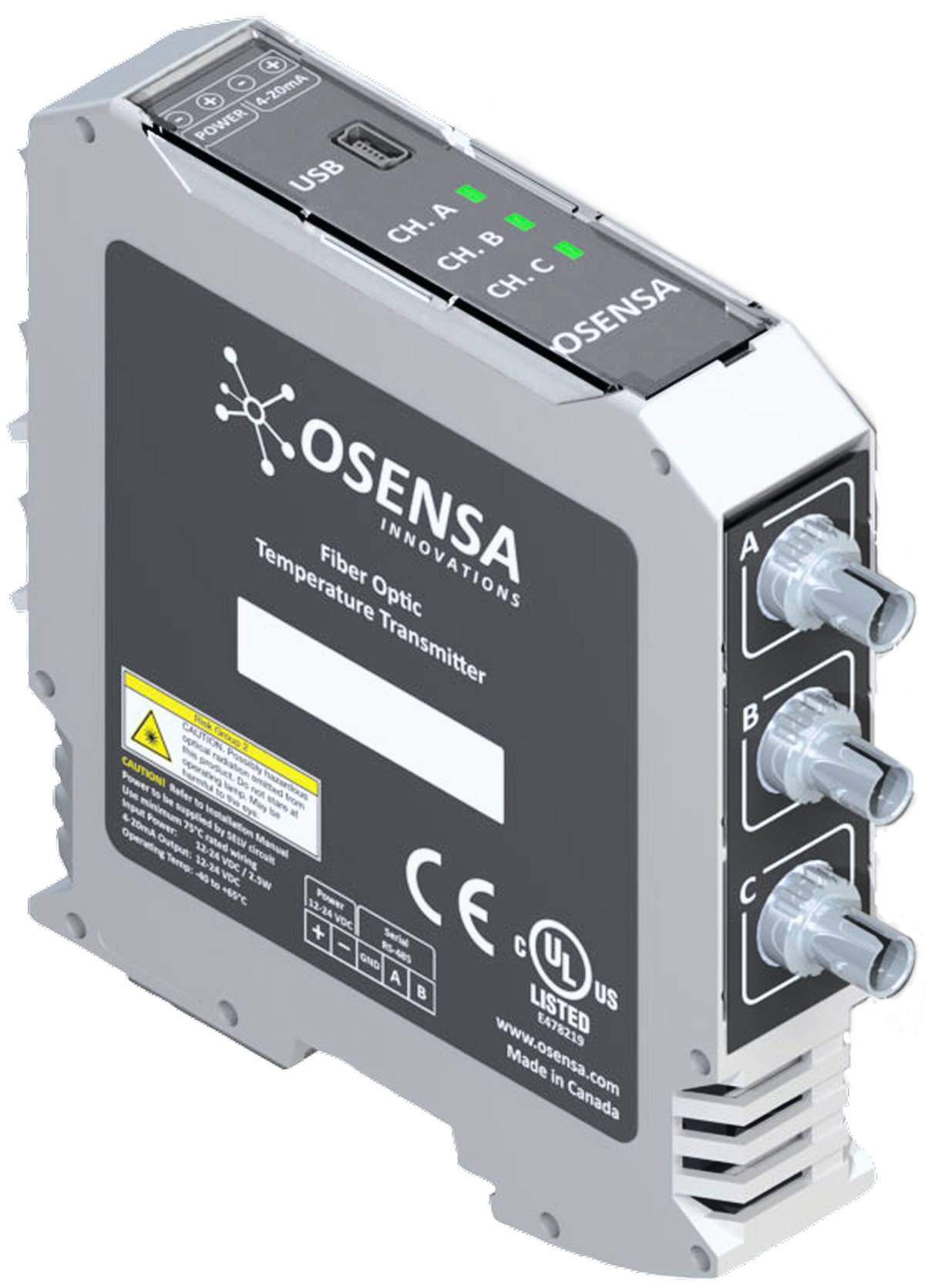

FTX-301-PWR+

Reliable Fiber Optic Thermal Monitoring

Osensa’s PWR+ series fiber optic temperature transmitter offers scalable industry leading performance. Each signal conditioner accepts three optical fiber sensor inputs for convenient threephase monitoring of hot spots in generator and transformer windings, on bus bars in switch gear, or critical connection points on transmission cables and circuit breakers. The FTX-301- PWR+ model includes three isolated 4-20mA outputs that are loop powered from a 12~24VDC source. All transmitters include isolated RS-485 serial connectivity over industry standard Modbus RTU protocol. Multiple transmitters can be connected in series on a standard 35mm DIN rail with power and RS-485 communication supplied to by the five-pin T-Bus connector.

Compatible Products

Datasheet

PRB-PF1

Fiber Optic Temperature Probes

Motors & Generators

2.3mm Nylon, 1000µm POF

Measurement Range:

-40°C to +120°C

Measurement Accuracy:

±1.0°C

Maximum Rating:

38 kV, 3 phase

Datasheet

PRB-GB3

Fiber Optic Temperature Probes

Motors & Generators

2.3mm FEP, 1000µm GOF

Measurement Range:

-40°C to 200°C

Measurement Accuracy:

± 1.0°C

Maximum Rating:

38 kV, 3 phase

Compare all Probes
