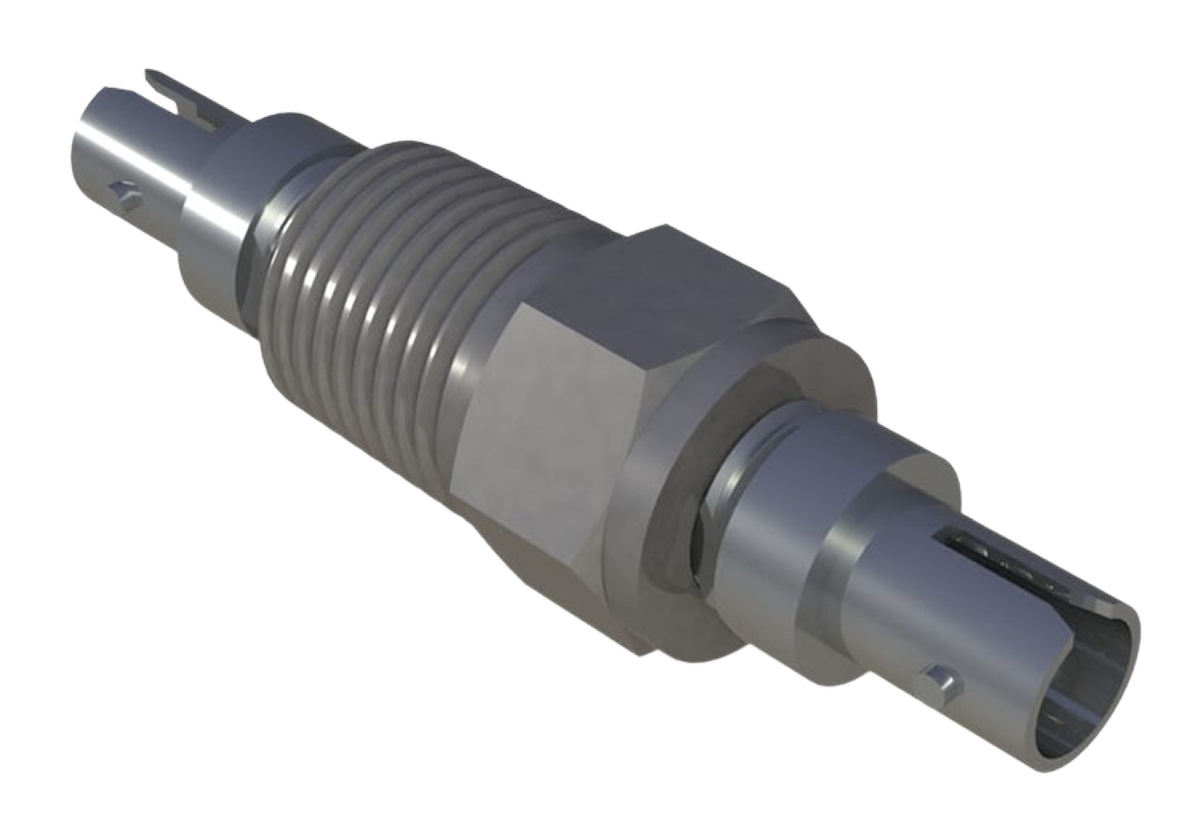

3D ModelsACC-FEEDTHRU-NPT Fiber Optic Feedthrough
The ACC-FEEDTHRU-NPT Optical Feedthrough is a hermetically sealed stainless steel ¼ inch male NPT fitting designed for use with OSENSA fiber optic temperature sensing systems. The feedthrough can provide a leak-free optical path between tank walls of power transformers, industrial microwaves, and vacuum process chambers. The ST-to-ST connection provides a reliable, vibrationresistant connection for OSENSA’s fiber optic temperature sensing probes.
Compatible Products
Fiber Optic Temperature Probes
Laser Ablation
0.23mm ETFE, 200µm GOF
Measurement Range:
-40°C to 80°C
Measurement Accuracy:
± 0.15°C
Jacket:
EFTE
Fiber Optic Temperature Probes
MRI, HIFU
0.23mm ETFE, 200µm GOF
Measurement Range:
-40°C to 80°C
Measurement Accuracy:
± 0.15°C
Jacket:
Polyimide & ETFE
Fiber Optic Temperature Probes
MRI, HIFU
0.23mm ETFE, 200µm GOF
Measurement Range:
-95°C to 80°C
Measurement Accuracy:
± 0.25°C
Jacket:
Polyimide & ETFE
Fiber Optic Temperature Probes
MRI, HIFU
0.50mm ETFE, 200µm GOF
Measurement Range:
-200°C to 150°C
Measurement Accuracy:
± 0.10°C
Typical Measurement Noise:
± 0.01°C
Fiber Optic Temperature Probes
MRI, HIFU
0.50mm ETFE, 200µm GOF
Measurement Range:
-40°C to 150°C
Measurement Accuracy:
± 0.10°C
Jacket:
ETFE
Fiber Optic Temperature Probes
MRI
0.75mm Polyimide, 400µm GOF
Measurement Range:
-40°C to 100°C
Measurement Accuracy:
± 0.10°C
Jacket:
PVC & Polyimide
Fiber Optic Temperature Probes
MRI
0.7mm ETFE, 400µm GOF
Measurement Range:
-40°C to 150°C
Measurement Accuracy:
± 0.15°C
Jacket:
Polyimide & ETFE
Fiber Optic Temperature Probes
MRI
0.45mm Polyimide, 200µm GOF
Measurement Range:
-40°C to 100°C
Measurement Accuracy:
± 0.10°C
Jacket:
Polyimide & PTFE
Fiber Optic Temperature Probes
Microwave, Induction Heating
0.45mm Polyimide, 200µm GOF
Measurement Range:
-40 to +350°C
Bend Radius:
40mm
Max Length:
0.5 to 10m (2.0m default)
