All Products>Fiber Optic Temperature Probes>PRB-242-MRI

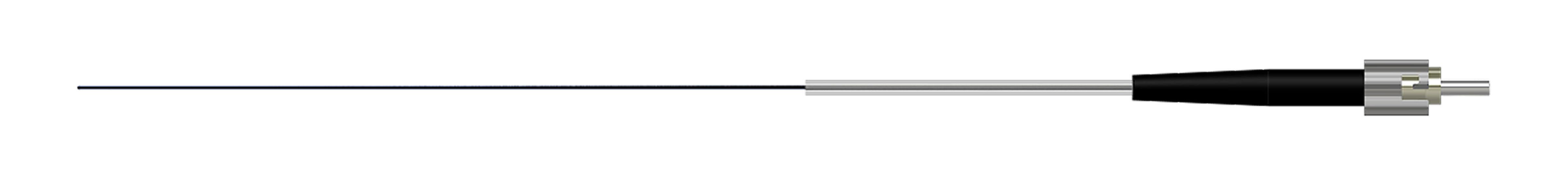

PRB-242-MRI

Non-magnetic, Non-Conducting, Optical Fiber Probes with Exceptional Precision

OSENSA’s fast response PRB-242 contact temperature probes provide accurate and reliable temperature sensing for a variety of life sciences, microwave and laboratory research applications requiring immunity to high intensity electro-magnetic fields and RF energy. These probes are constructed with the sensing element near the tip for contact sensing of MRI electrodes, cryogenic tissues, or electronic components.They can handle temperatures from -200°C up to 150°C while providing extremely fast response times. The small sensing element minimizes image artifacts in MRI environments up to 16 Tesla.

Product Specs

Measurement Range

-40°C to 150°C

Measurement Accuracy

± 0.10°C

Immersion Response Time Constant

180ms

Tip Diameter

500µm

Stability

± 0.02°C (15min.)

Peak To Peak Noise 1s Averaging

± 0.01°C

Jacket

ETFE

Bend Radius

16mm

Compatible Products

Temperature Transmitters

MRI, Microwave, Semiconductor, HIFU

FTX-300-LUX+

Number Of Channels:

3

Analog Output:

3

Digital Interface:

USB & Isolated RS-485

Temperature Transmitters

MRI, Microwave, Semiconductor, HIFU

2 Ch, USB, 4-20mA, RS-485

Number Of Channels:

2

Analog Output:

2

Digital Interface:

USB & Isolated RS-485

Temperature Transmitters

MRI, Microwave, Semiconductor, HIFU

1 Ch, USB, 4-20mA, RS-485

Number Of Channels:

1

Analog Output:

1

Digital Interface:

USB & Isolated RS-4851

Temperature Transmitters

MRI, Microwave, HIFU

3 Ch, High Gain for weaker signals

Number Of Channels:

3

Analog Output:

3

Digital Interface:

USB & Isolated RS-485

Temperature Transmitters

MRI, Microwave, HIFU

2 Ch, High Gain for weaker signals

Number Of Channels:

2

Analog Output:

2

Digital Interface:

USB & Isolated RS-485

Temperature Transmitters

MRI, Microwave, HIFU

1 Ch, High Gain for weaker signals

Number Of Channels:

3

Analog Output:

3

Digital Interface:

USB & Isolated RS-485

Temperature Transmitters

MRI

1 Ch, OEM Module SPI or Modbus

Digital Interface:

Serial Modbus (optional SPI)

Measurement Range:

-40 to +200°C

Measurement Accuracy:

-20 to +85°C

Temperature Transmitters

MRI

Handheld Fiber Optic Signal Conditioner

Digital Interface:

USB-mini

Measurement Range:

-40°C to +120°C

Resolution:

0.01°C
