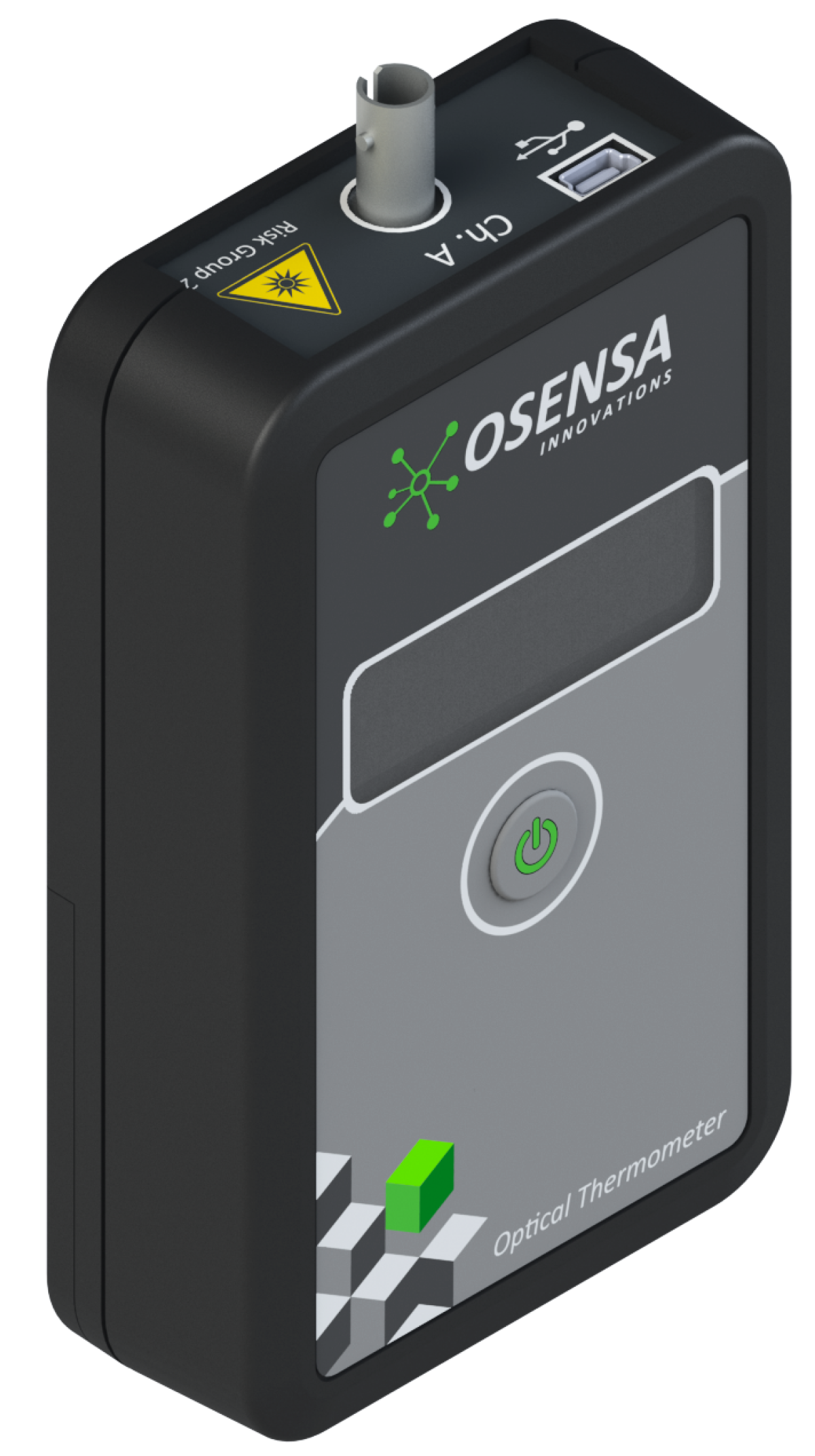

HTX-110-PWR

Handheld Fiber Optic Signal Conditioner - Medium Voltage

Designed for applications in the power industry, the HTX-110- PWR series optical thermometer offers flexibility as a portable, battery-powered, temperature sensing diagnostic tool. Users can quickly check probe health at time of install with the backlit LCD displaying both temperature and signal level.

The HTX-110-PWR can also connect to a computer using a mini USB cable for data logging with OSENSAView Pro software. The handheld unit is ruggedized with a shock-proof silicone cover making it a great choice for use in OEM manufacturing and field service. The HTX-110-PWR model is designed specifically to support connector-less probe styles like the PRB-110 and PRB-910 used on medium voltage equipment.

Product Specs

Measurement Range

-40°C to +200°C

Operating Environment

-20°C to +50°C

Digital Interface

USB-mini, Wireless

Resolution

0.1°C

System Accuracy

±1.0°C

Update Rate

30 Hz

Communication Protocol

Modbus RTU, Half Duplex, Bluetooth® Smart

Operating Humidity

0 to 90% RH (Non-Condensing)

Power

Standard 9V Alkaline or Rechargeable

Dimensions

122mm Long x 76mm Wide x 36mm Depth (with silicone cover)

Configuration Software

OSENSAView or OSENSAView Pro

Compatible Probes

PRB-110, PRB-910

Led Color

RED

Probe Connection Type

Bare Fiber Twist Lock

Display

Backlit LCD Character Display

Certifications

CE, FCC

Compatible Products

Datasheet

PRB-110

Fiber Optic Temperature Probes

Switchgear, Dry Type Transformer, E-Mobility

2.3mm Nylon, 1000µm POF

Measurement Range:

-40°C to +120°C

Measurement Accuracy:

±1.0°C

Maximum Rating:

38 kV, 3 phase

Datasheet

PRB-910

Fiber Optic Temperature Probes

Switchgear, Dry Type Transformer, E-Mobility

2.3mm Nylon/FEP, 1000µm POF/GOF

Measurement Range:

-40°C to +200°C

Measurement Accuracy:

±1.0°C

Maximum Rating:

38 kV, 3 phase
