HTX-100-PWR

Convenient Fiber Optic Temperature Sensing

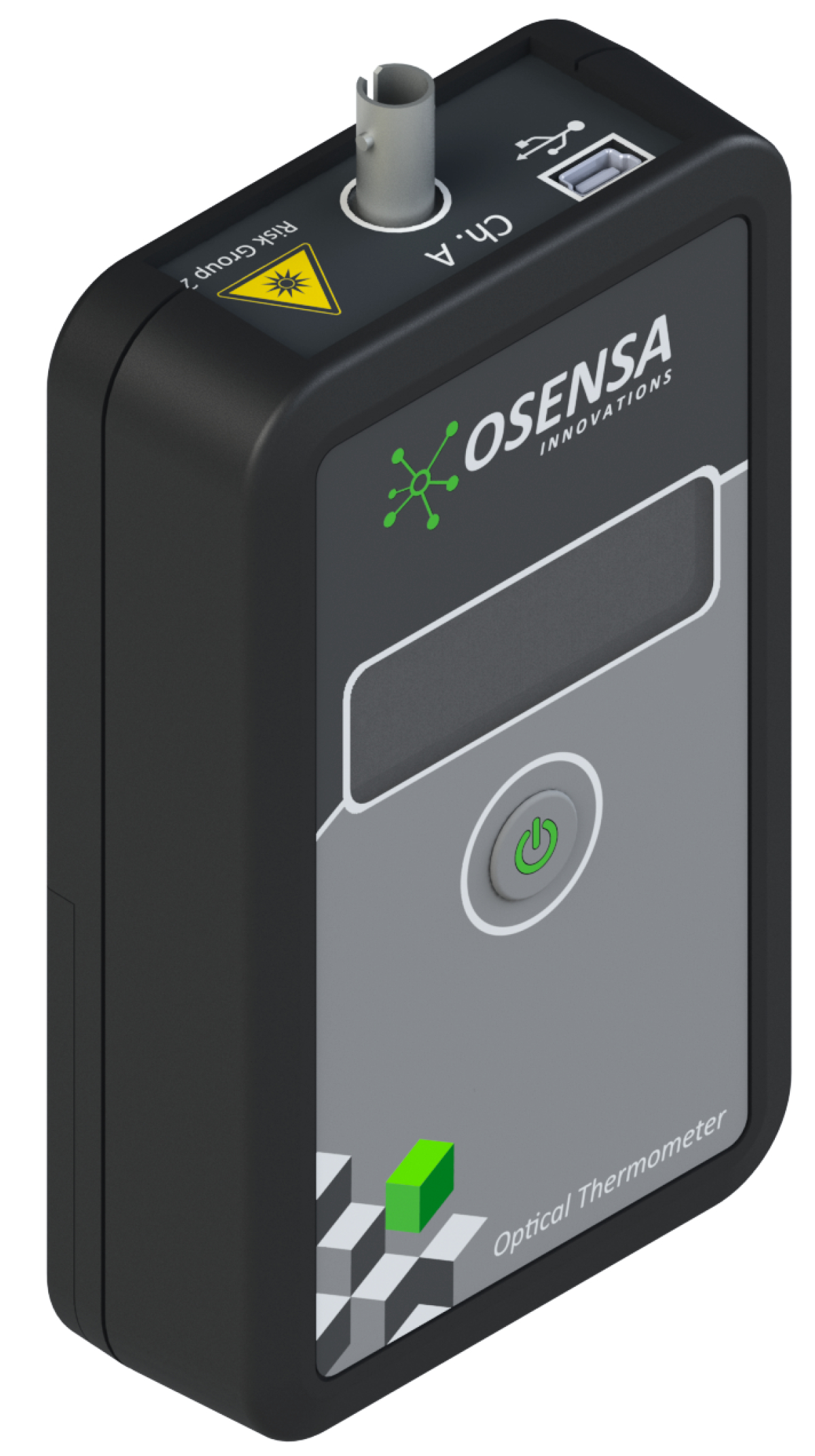

Designed for applications in the power industry, the HTX-100- PWR series optical thermometer offers flexibility as a portable, battery-powered, temperature sensing diagnostic tool. Users can quickly check probe health at time of install with the backlit LCD displaying both temperature and signal level. The HTX-100-PWR can also connect to a computer using a mini USB cable for data logging with OSENSAView Pro software. The handheld unit is ruggedized with a shock-proof silicone cover making it a great choice for use in OEM manufacturing and field service. The HTX-110-PWR model is designed specifically to support connector-less probe styles like the PRB-110 and PRB-910 used on medium voltage equipment.

Product Specs

Measurement Range

-40°C to +200°C

Resolution

0.1°C

System Accuracy

±1.0°C

Operating Environment

-20°C to +50°C

Compatible Probes

PRB-PF1, PRB-GB3

Digital Interface

USB-mini, Wireless

Update Rate

30 Hz

Communication Protocol

Modbus RTU, Half Duplex, Bluetooth® Smart

Operating Humidity

0 to 90% RH (Non-Condensing)

Power

Standard 9V Alkaline or Rechargeable

Dimensions

122mm Long x 76mm Wide x 36mm Depth (with silicone cover)

Configuration Software

OSENSAView or OSENSAView Pro

Led Color

BLUE

Probe Connection Type

Display

Backlit LCD Character Display

Certifications

CE, FCC

Compatible Products

Datasheet

PRB-PF1

Fiber Optic Temperature Probes

Motors & Generators

2.3mm Nylon, 1000µm POF

Measurement Range:

-40°C to +120°C

Measurement Accuracy:

±1.0°C

Maximum Rating:

38 kV, 3 phase

Datasheet

PRB-GB3

Fiber Optic Temperature Probes

Motors & Generators

2.3mm FEP, 1000µm GOF

Measurement Range:

-40°C to 200°C

Measurement Accuracy:

± 1.0°C

Maximum Rating:

38 kV, 3 phase
