Scalable High-Performance Fiber Optic Temperature Sensing

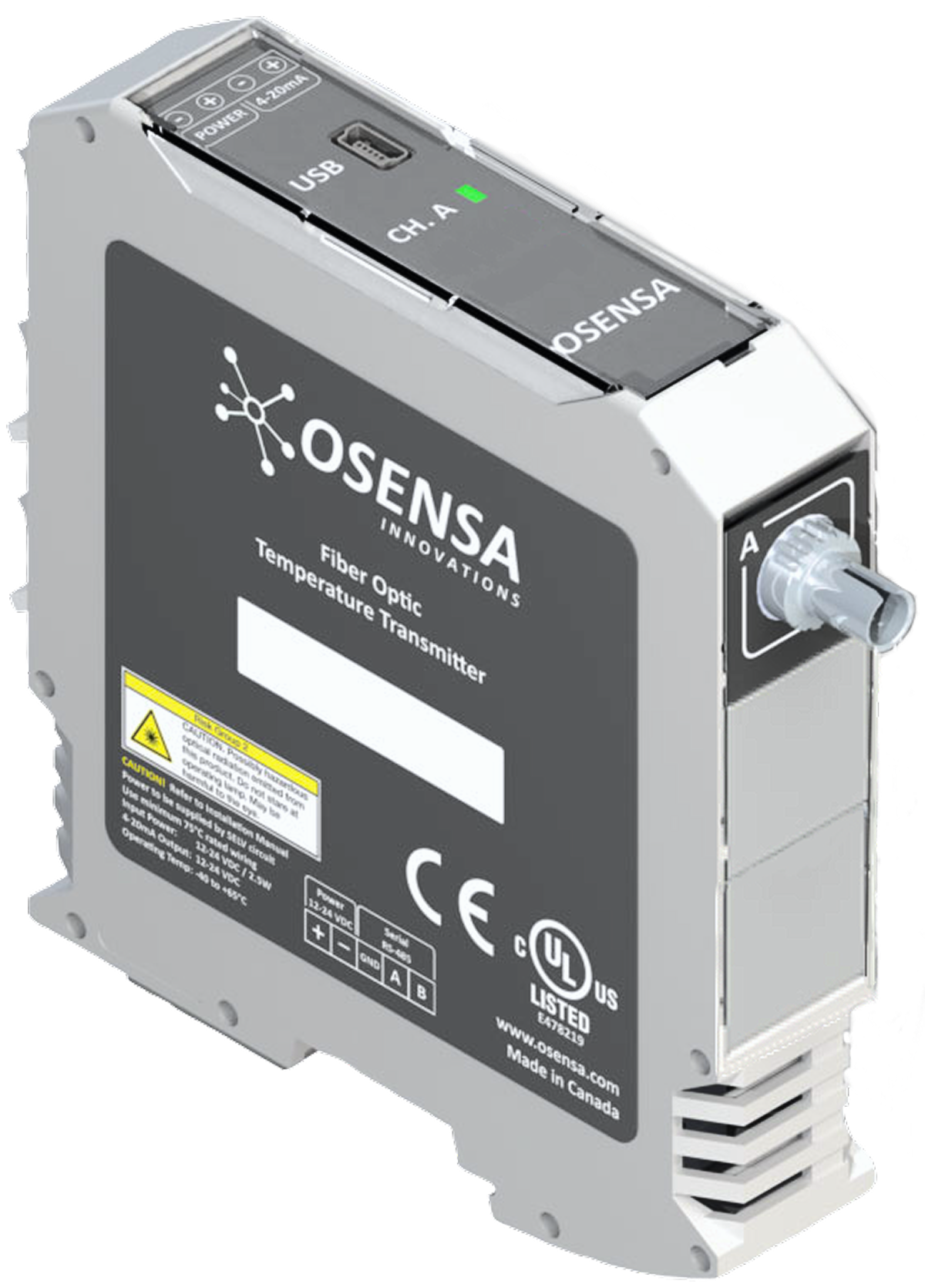

Whether your application requires one, two, or three sensing channels, the FTX-300-LUX+CRYO transmitter is ideally suited for ultra-low temperature measurement applications offering exceptional performance where traditional thermocouples fail. It reads OSENSA’s proprietary low temperature fiber optic sensors targeting applications between -220°C and 450°C. It supports Modbus communications over an isolated RS-485 connection and also connects to a personal computer with a standard USB cable to provide real-time temperature trending and data logging with the optional OSENSAView Pro software. Also supported are Python, Matlab and LabView libraries. The 4-20mA analog outputs have 16 bit resolution with configurable alarms for easy connection to a PLC or temperature controller. Multiple signal conditioners can be connected in series and mounted on a standard 35mm DIN rail.
