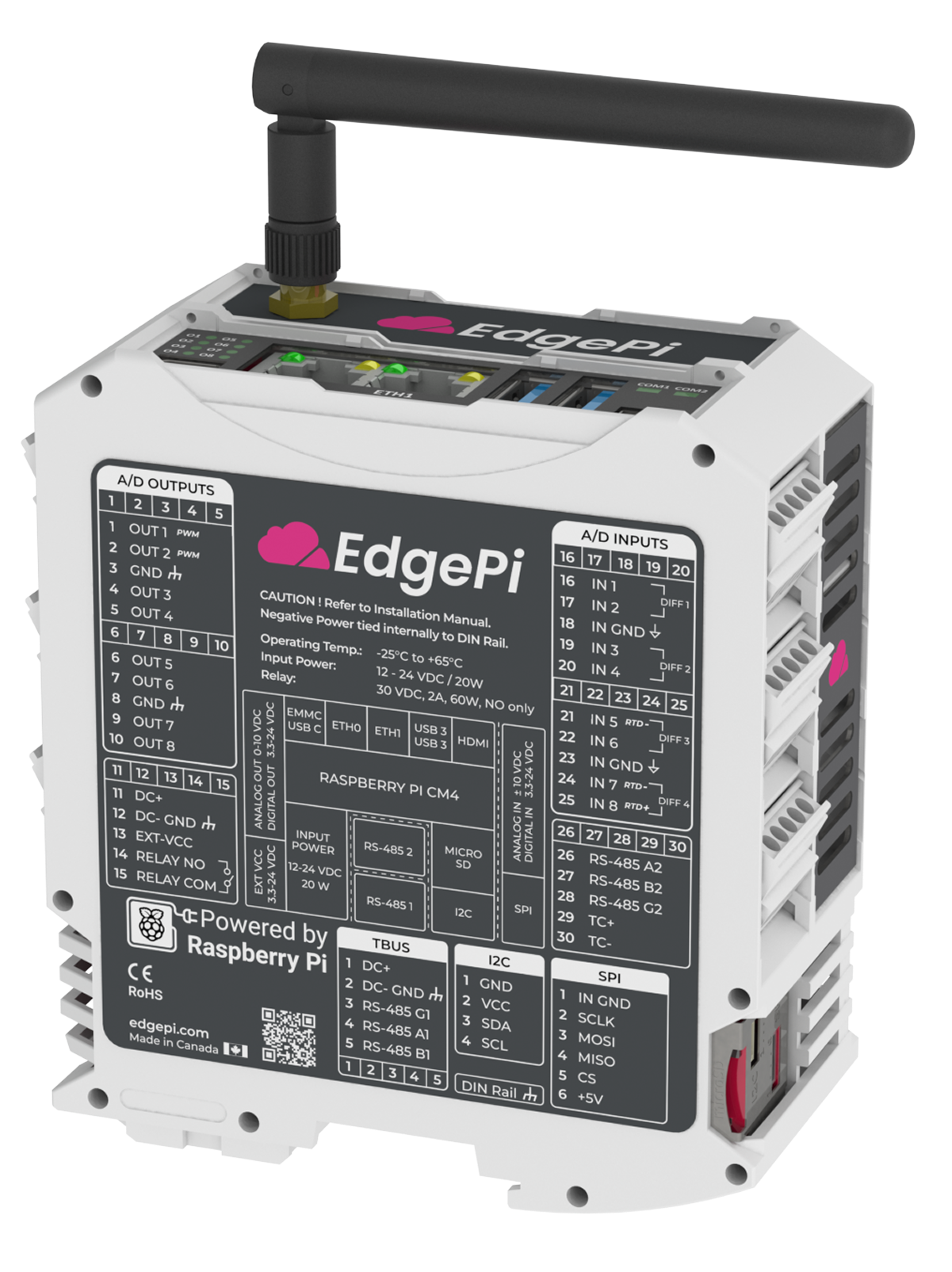

EdgePi

Cloud Based Industrial PC/PLC/IoT Device

A DIN rail mounted, Raspberry Pi 4 industrial PC with the features of a Programmable Logic Controller (PLC) and Internet of Things (IoT) cloud edge device.


Product Specs

Operating Environment
-25°C to +65°C
User Interface
Web (EdgePi Portal), Low Code (Node-RED), Command Line (ssh)
Ports
2x RS485, 2x USB 3.0, 1x SPI, 1x I2C, 1x Micro HDMI
Protocols
MQTT, RPC, REST API (Cloud)
Networking
2x GigE, WiFi
Operating Humidity
0 to 90% RH (Non-Condensing)
Power
12-24 VDC ±15%, reverse polarity protected
Dimensions
114mm Tall x 104mm Wide x 45mm Long
Weight
283g (0.62 lbs)
Certifications
FCC, RoHS, CE, UL
Inputs & Outputs
8x Analog or Digital Inputs, 8x Analog or Digital Outputs
Features
RTD, PWM, RTC, Thermocouple, Relay, EEPROM, BLE
SDK
python
Security
256-bit private key encryption (Cloud)
Cloud
Control Panel (EdgePi Portal), Data Visualization (Grafana), Data Storage (Cloud Native Timeseries)

Compatible Products

Monitoring Systems

EdgePi Cloud Portal

User Interface:
Web-based GUI
Remote User Access:
Any Internet Connected Node
User Authentication:
OAuth2
